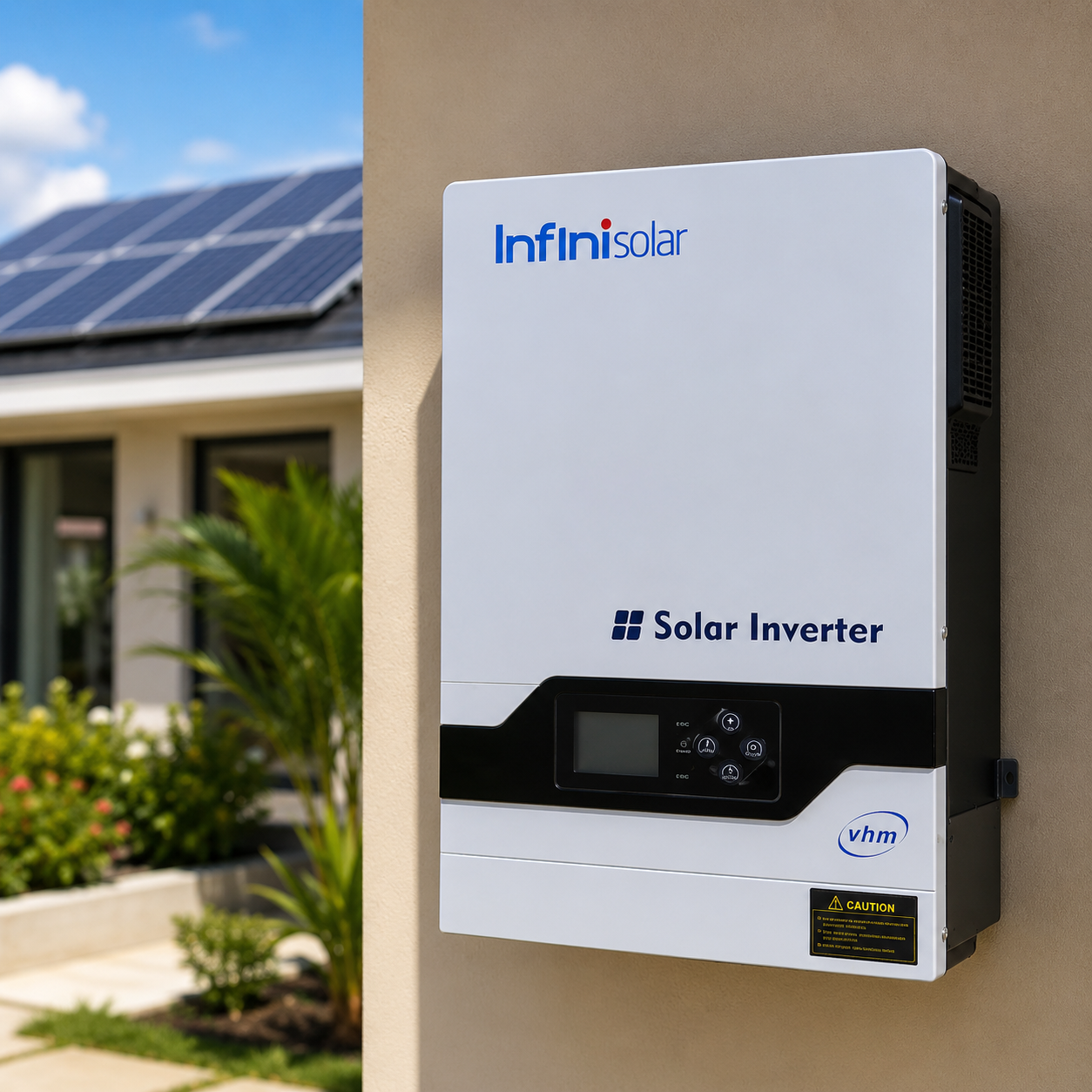

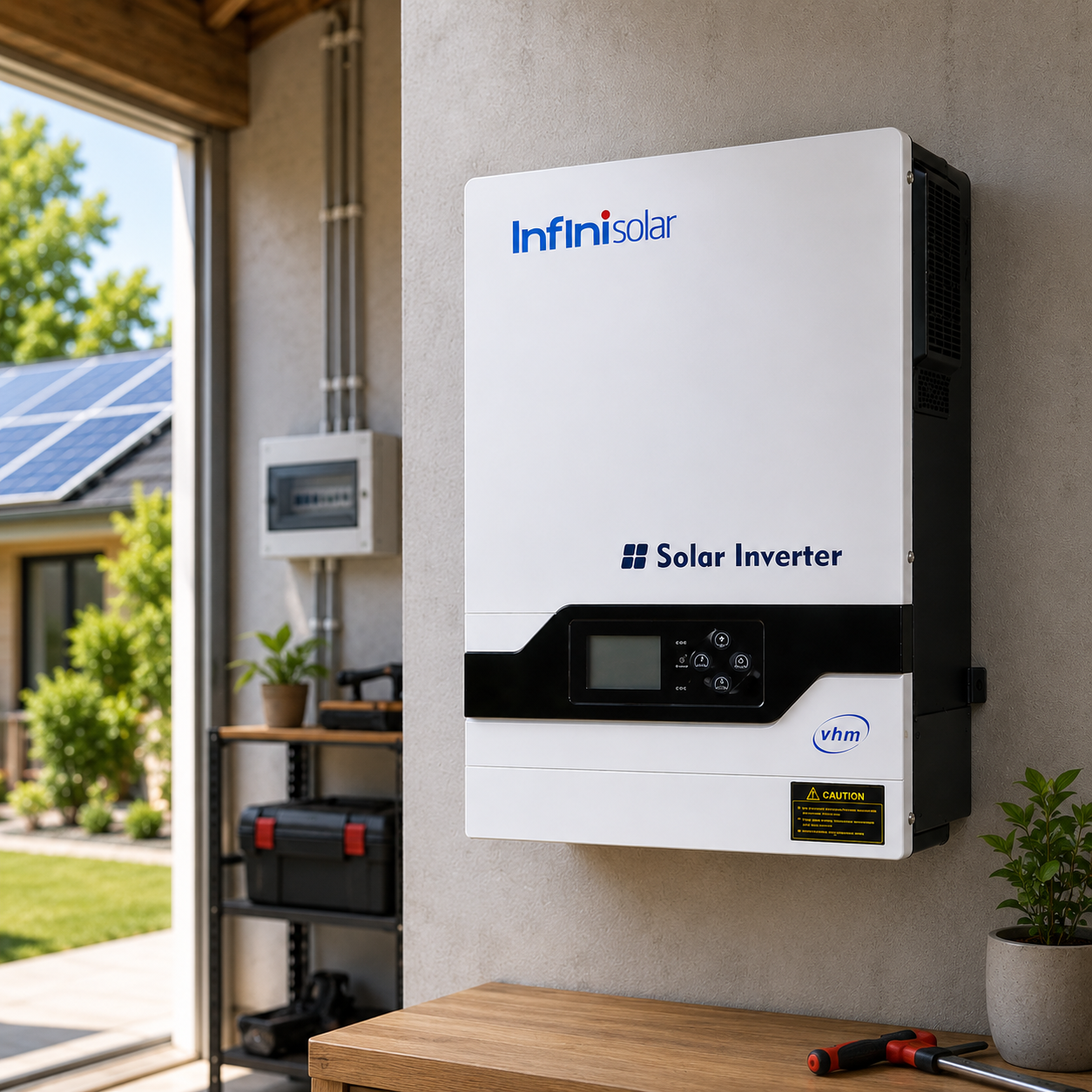

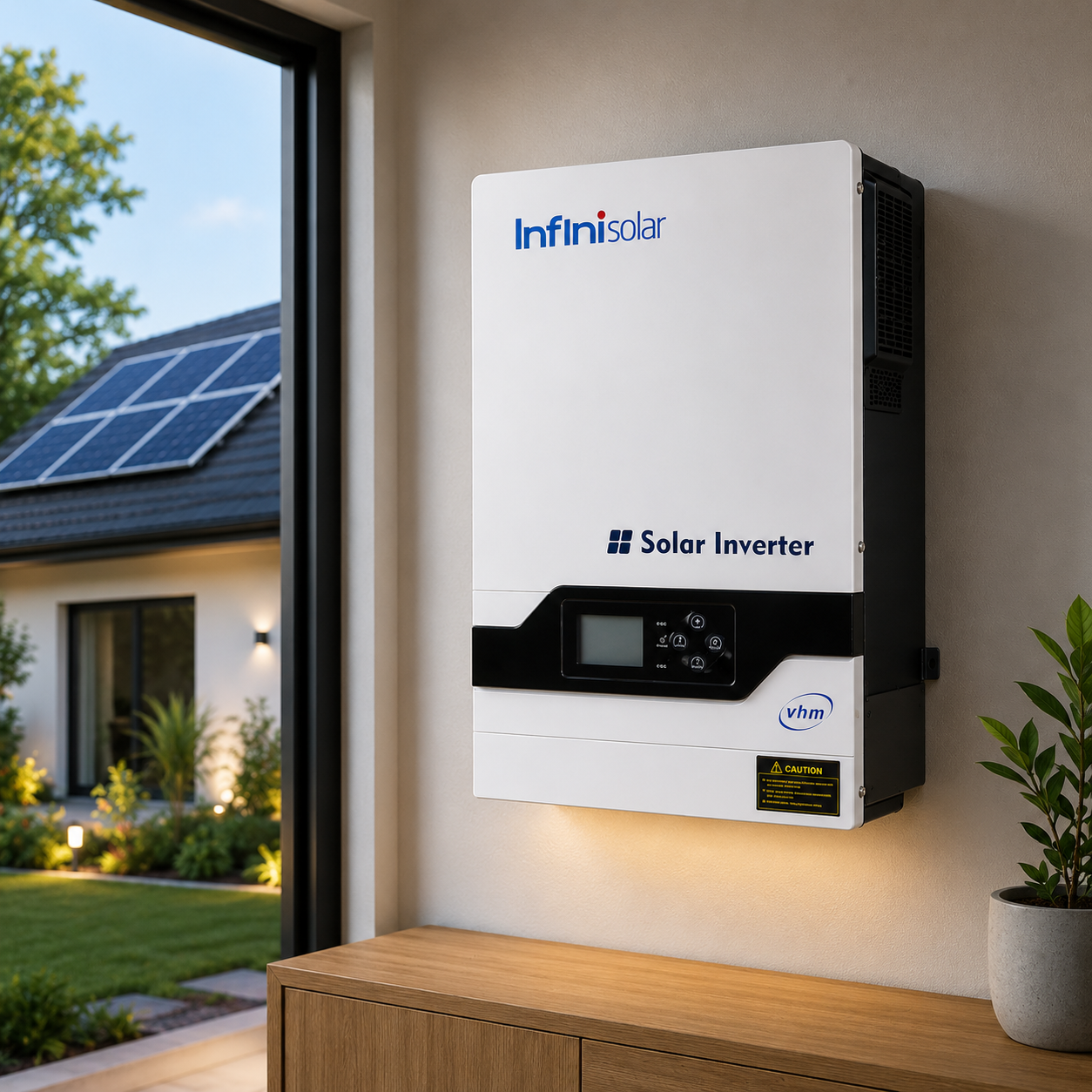

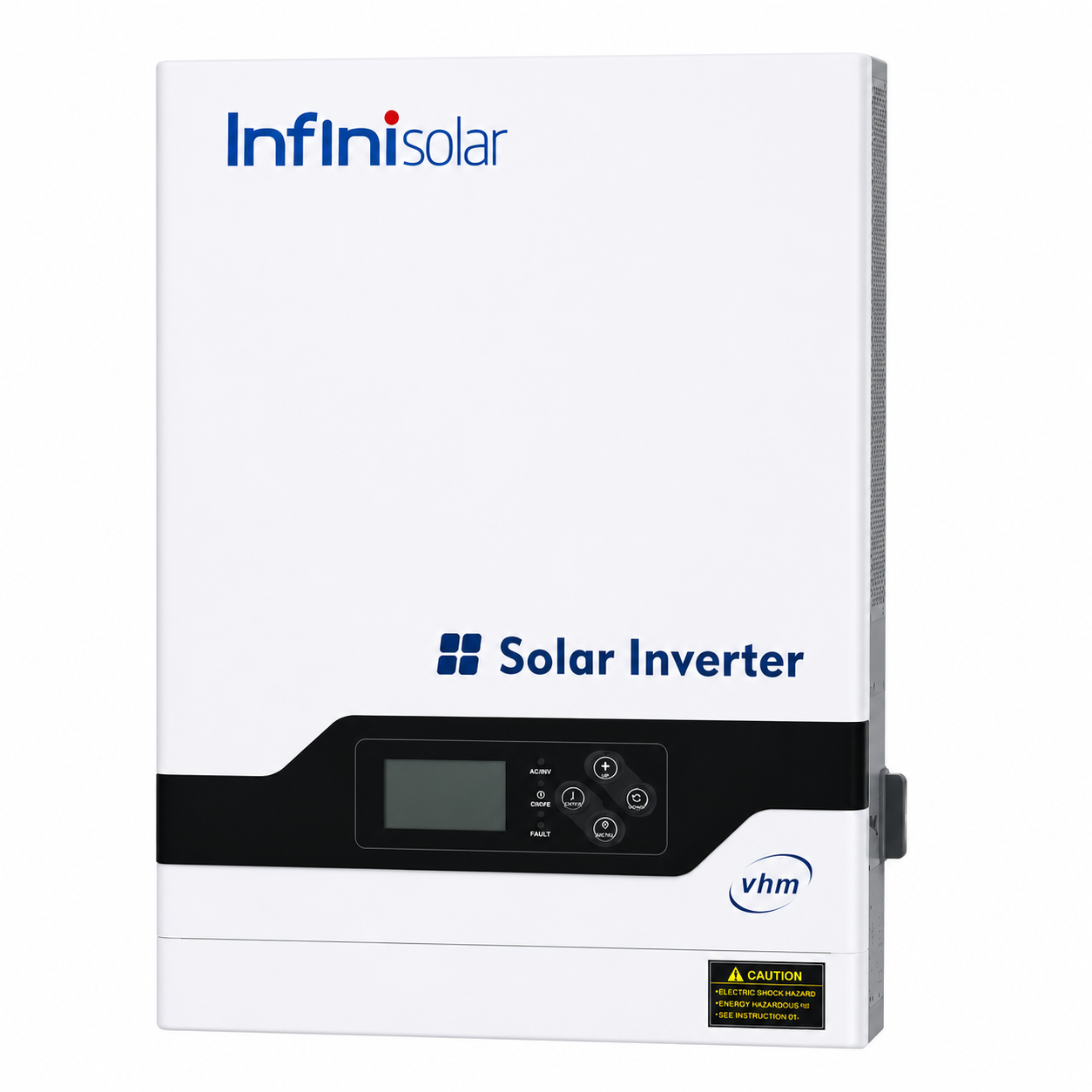

The 1.2kW (1200W) 12V InfiniSolar Hybrid Inverter – PV18-1212 VPM is a compact and efficient hybrid inverter designed for residential, office, and small commercial solar power systems. Delivering 1200W (1.2kW) of continuous pure sine wave output, it integrates a 60A MPPT solar charge controller with a 105VDC maximum PV input, ensuring maximum solar energy harvesting and efficient battery charging.
This inverter intelligently combines solar power, battery storage, and grid electricity to provide uninterrupted power for essential appliances while reducing electricity costs.
System Design & Configuration
1.2kW (1200W) Pure Sine Wave Output
Supplies clean and stable power suitable for sensitive electronics and household appliances.
12V Battery System
Operates with a single 12V battery bank, making it ideal for compact solar installations.
Built-in 60A MPPT Charge Controller
Maximizes solar energy production while providing fast and efficient battery charging.
105VDC Maximum PV Input
Supports high-voltage solar panel configurations for improved system efficiency.
Hybrid Power Management
Automatically switches between solar, battery, and utility power for uninterrupted electricity.
Intelligent LCD Display
Provides real-time monitoring of system performance, battery status, charging, and load information.
Technical Specifications
Specification
Details
Model
PV18-1212 VPM
Rated Output Power
1.2kW (1200W)
Battery Voltage
12V DC
Inverter Type
Hybrid Pure Sine Wave
Solar Charge Controller
60A MPPT
Maximum PV Input Voltage
105VDC
AC Output
230V AC
Waveform
Pure Sine Wave
Charging Source
Solar & Utility
Display
LCD Screen
Protection
Overload, Short Circuit, Overcharge, Deep Discharge, Over Temperature
Key Features
1.2kW (1200W) continuous output power Pure sine wave technology 12V battery system compatibility Built-in 60A MPPT solar charge controller Maximum PV input voltage of 105VDC Intelligent hybrid power management LCD monitoring display Automatic battery charging Multiple protection systems Quiet and energy-efficient operation Easy installation Reliable backup power solution
Applications
Residential solar systems Small offices Shops and kiosks Remote homes Backup power systems Lighting systems Telecommunication equipment Essential household appliances
Installation & Usage Guidelines
Install in a cool, dry, and well-ventilated location.
Use appropriately sized DC and AC cables.
Connect a compatible 12V battery bank.
Ensure solar panel voltage remains within the 105VDC limit.
Properly ground the inverter during installation.
Installation by a qualified technician is recommended.
Maintenance & Care
Keep the inverter clean and dust-free.
Ensure ventilation openings remain unobstructed.
Inspect cable connections periodically.
Monitor battery condition regularly.
Avoid moisture and direct sunlight.
Perform routine system inspections for optimal performance.
Best Practices
Recommended
Use high-quality deep-cycle or lithium batteries.
Install compatible solar panels within the specified voltage range.
Monitor system performance using the LCD display.
Keep battery terminals clean and secure.
Schedule periodic maintenance checks.
Avoid
Overloading the inverter beyond 1200W.
Connecting incompatible battery voltages.
Blocking ventilation openings.
Operating in wet or humid environments.
Exceeding the maximum PV input voltage.
Performance Overview
Function
Performance
Solar Charging
Excellent
Power Efficiency
Excellent
Battery Charging
Excellent
Power Stability
Excellent
Backup Reliability
Excellent
Frequently Asked Questions
What is the inverter’s output power?
It delivers 1.2kW (1200W) of continuous pure sine wave power.
What battery voltage does it use?
It operates on a 12V battery system.
Does it include an MPPT charge controller?
Yes. It features a built-in 60A MPPT solar charge controller.
What is the maximum solar input voltage?
The inverter supports a maximum PV input voltage of 105VDC.
Can it provide backup power during outages?
Yes. It automatically switches to battery power during grid failures, ensuring uninterrupted operation of connected loads.
Why Choose the 1.2kW (1200W) InfiniSolar Hybrid Inverter
Reliable 1200W pure sine wave output Efficient 60A MPPT solar charging Supports 105VDC solar input Intelligent hybrid power management Compact and easy to install Comprehensive protection features Ideal for homes and small businesses Reliable long-term solar performance
