Charge Controller

• Model: MC48100N25 – High-performance MPPT charge controller for large-scale solar applications.

• Rated Current: 100A, supporting solar arrays up to 1.2 kW (12V), 2.4 kW (24V), 3.6 kW (36V), or 4.8 kW (48V).

• System Voltage: Automatic detection of 12V, 24V, 36V, or 48V battery systems.

• Maximum PV Input Voltage: 150V DC, allowing for flexible solar array configuration.

• MPPT Tracking Efficiency: ≥ 99.9%, ensuring maximum energy harvest from solar panels.

• Conversion Efficiency: Up to 98%, reducing power loss and improving overall system output.

• Display: Large LCD screen for clear, real-time system data including PV input, charging current, and battery status.

• Battery Compatibility: Supports LiFePO₄, AGM, gel, and flooded lead-acid batteries.

Product: 120A 24V/48V MPPT Charge Controller – Felicity Solar SCCM12048
Type: MPPT Solar Charge Controller
Maximum Charging Current: 120A
Battery Voltage: 24V / 48V DC
Maximum PV Input Voltage: 195V DC
Maximum PV Input Power: 24V – 3300W / 48V – 6600W
Maximum Efficiency: Up to 98%
MPPT Tracking Efficiency: ≥99%
Application: Residential, commercial, industrial, off-grid, and hybrid solar power systems.
Features: Advanced MPPT technology, automatic battery voltage detection, support for lithium and lead-acid batteries, RS485 and CAN communication, intelligent three-stage charging, LCD monitoring, comprehensive electronic protection, and efficient solar energy management

• Model: AP-40 – Advanced MPPT charge controller for versatile solar applications.

• Rated Current: 40A, suitable for solar arrays up to 520W (12V), 1040W (24V), or 2080W (48V).

• System Voltage: Auto-detection for 12V, 24V, or 48V battery configurations.

• Maximum PV Input Voltage: 150V DC, allowing for flexible solar array designs.

• MPPT Tracking Efficiency: ≥ 99.5%, ensuring optimal solar energy harvest.

• Conversion Efficiency: Up to 98%, minimizing power losses during charging.

• Display: Backlit LCD interface for real-time system status, PV input, and battery data.

• Battery Compatibility: Supports LiFePO₄, AGM, gel, and flooded lead-acid batteries

Product: 45A 12V/24V/48V MPPT Charge Controller – Felicity Solar SCCM4548
Type: MPPT Solar Charge Controller
Maximum Charging Current: 45A
Battery Voltage: 12V / 24V / 48V DC
Maximum PV Input Voltage: 145V DC
Maximum PV Input Power: 12V – 625W / 24V – 1250W / 48V – 2500W
Efficiency: Up to 98%
Application: Residential, commercial, off-grid, and hybrid solar power systems.
Features: Advanced MPPT technology, automatic battery voltage detection, intelligent three-stage charging, MODBUS communication support, support for lithium and lead-acid batteries, comprehensive electronic protection, and efficient solar energy management.

• Model: Phoenix 60A – Intelligent digital solar charge controller for high-performance solar setups.

• Rated Current: 60A, supporting solar arrays up to 720W (12V), 1.44kW (24V), or 2.88kW (48V).

• System Voltage: Automatically detects 12V/24V/48V battery configurations.

• Technology Type: Available in PWM or MPPT variants (depending on model specification).

• Display: Large LCD screen with backlight for real-time monitoring of PV input, charging status, and battery condition.

• Battery Compatibility: Supports LiFePO₄, AGM, gel, and flooded lead-acid batteries.

• Protection Functions: Comprehensive protection against overcharging, over-discharging, short circuits, reverse polarity, and over-temperature.

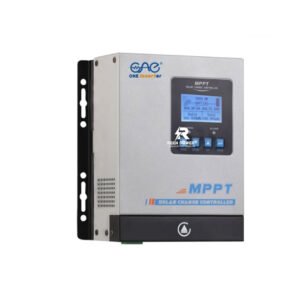

• • Model: AP-60 – High-performance MPPT charge controller for advanced solar systems.

  • Rated Current: 60A, supporting solar arrays up to 780W (12V), 1560W (24V), or 3120W (48V).

  • System Voltage: Automatically detects 12V, 24V, or 48V configurations.

  • Maximum PV Input Voltage: 150V DC, allowing flexible and efficient solar array design.

  • MPPT Tracking Efficiency: ≥ 99.5%, ensuring optimal solar energy capture.

  • Conversion Efficiency: Up to 98%, minimizing energy loss during operation.

  • Display: Backlit LCD interface for real-time system monitoring of PV voltage, current, and battery performance.

  • Battery Compatibility: Works with LiFePO₄, AGM, gel, and flooded lead-acid batteries.

  • Protection Functions: Comprehensive protection from overcharging, over-discharging, reverse polarity, short circuit, and overheating.

  • Communication Interface: RS485/USB connectivity for data logging and remote monitoring.
