Charging Technology: MPPT (Maximum Power Point Tracking)
Battery Compatibility: LiFePO₄, AGM, Gel, and Flooded Lead-Acid
Application: Residential solar systems, commercial installations, agricultural projects, telecommunications, backup power systems, and off-grid solar applications.
Features: Advanced MPPT technology, automatic battery voltage detection, intelligent multi-stage charging, LCD display, high charging efficiency, RS485/USB communication, comprehensive protection features, and reliable performance for high-capacity solar energy systems.

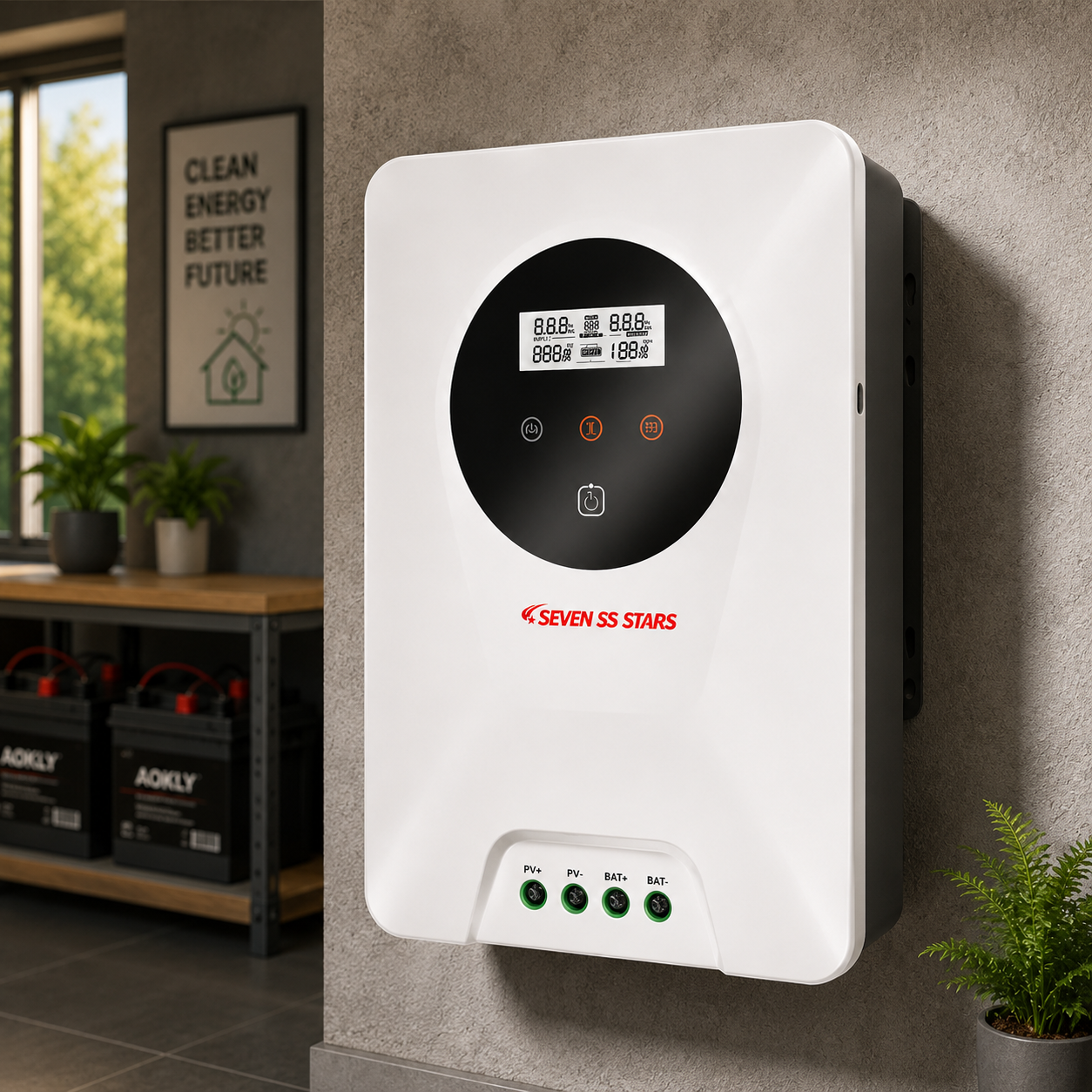

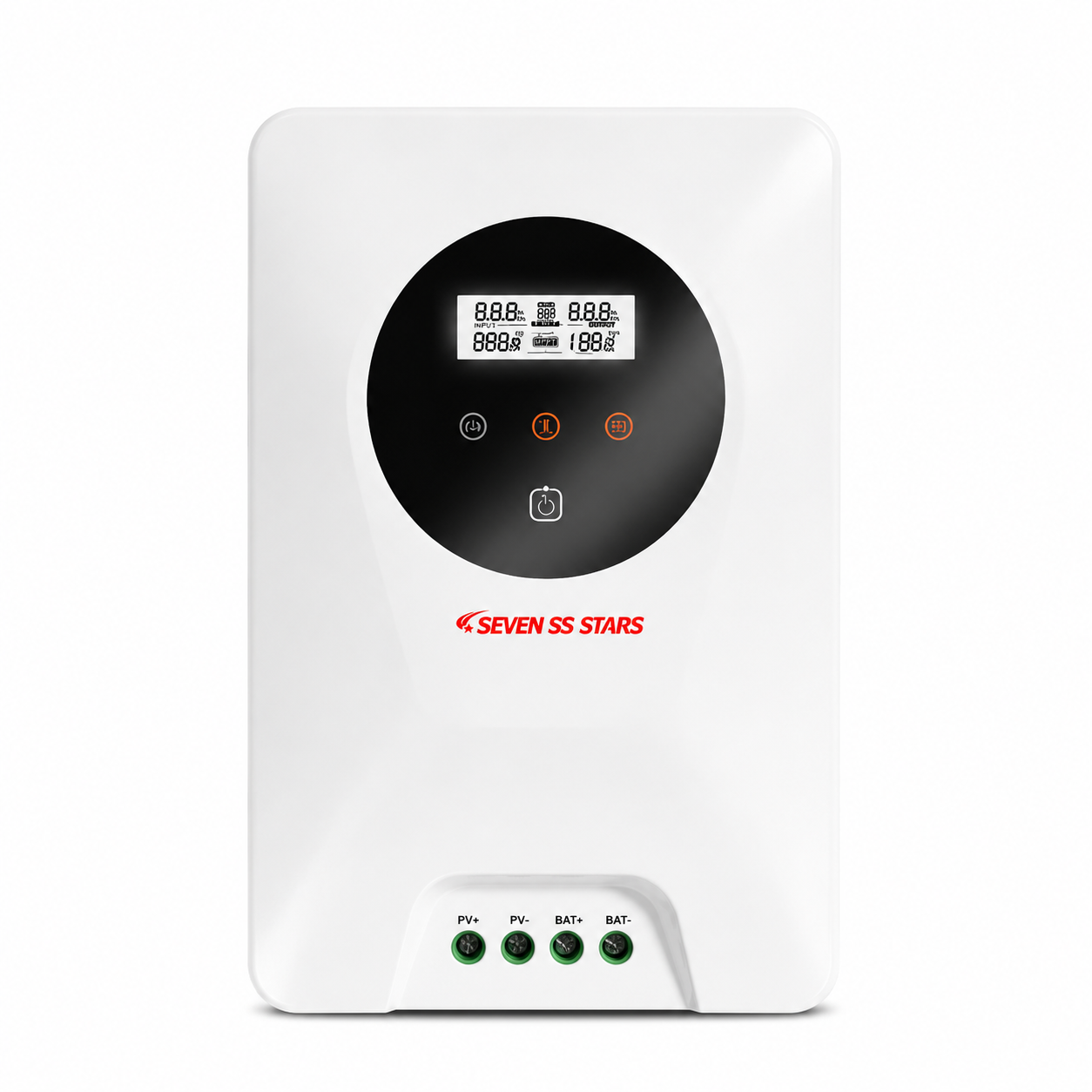

120A 12V/24V/48V MPPT Charge Controller – Seven SS Stars SCCM12048
Product Overview
The 120A 12V/24V/48V MPPT Charge Controller – Seven SS Stars SCCM12048 is a high-capacity solar charge controller designed to maximize energy harvesting and battery charging efficiency in medium to large solar power systems. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it continuously tracks the optimal operating point of the solar array to deliver significantly higher charging efficiency than conventional PWM controllers.
With automatic 12V, 24V, and 48V battery voltage detection, this controller is compatible with various battery types, including LiFePO₄ lithium, AGM, Gel, and Flooded Lead-Acid batteries. Its intelligent charging algorithm, LCD monitoring screen, and comprehensive protection features ensure safe, efficient, and reliable solar charging for residential, commercial, agricultural, and off-grid installations.
System Design & Configuration
120A Charging Capacity
Supports large battery banks and high-power solar installations.
Advanced MPPT Technology
Maximizes solar panel output by continuously tracking the highest available power point.
Automatic Battery Voltage Detection
Automatically detects and operates with 12V, 24V, or 48V battery systems.
Intelligent Multi-Stage Charging
Optimizes battery charging for improved battery health and longer service life.
LCD Display
Displays real-time information including battery voltage, charging current, PV input, and system status.
Comprehensive Protection System
Protects against overcharging, reverse polarity, short circuits, overload, overheating, and excessive battery discharge.
Technical Specifications
Specification
Details
Model
SCCM12048
Rated Charging Current
120A
System Voltage
12V / 24V / 48V Auto Detection
Charging Technology
MPPT (Maximum Power Point Tracking)
Maximum Charging Efficiency
Up to 98%
Battery Compatibility
LiFePO₄, AGM, Gel & Flooded Lead-Acid
Display
LCD Digital Display
Communication
RS485 / USB
Cooling
Intelligent Cooling
Application
Residential, Commercial & Off-Grid Solar Systems
Maximum supported PV power depends on the system voltage configuration.
Key Features
120A charging capacity
MPPT solar charging technology
Automatic 12V/24V/48V system detection
High conversion efficiency
Intelligent multi-stage battery charging
LCD monitoring display
Supports lithium and lead-acid batteries
RS485/USB communication interface
Comprehensive electronic protection
Low standby power consumption
Easy installation
Maintenance-free operation
Applications
Residential solar systems
Commercial solar installations
Off-grid solar systems
Solar backup systems
Agricultural solar projects
Telecommunications sites
Schools and hospitals
Remote cabins
Small industrial solar installations
Installation & Usage Guidelines
Install in a dry, cool, and well-ventilated location.
Connect the battery before connecting the solar panels.
Use correctly sized cables and protective devices.
Configure the correct battery type before operation.
Ensure proper grounding for system safety.
Professional installation is recommended.
Maintenance & Care
Keep the controller clean and dust-free.
Inspect electrical terminals regularly.
Check ventilation openings periodically.
Monitor charging performance using the LCD display.
Tighten cable connections during scheduled maintenance.
Best Practices
Recommended
Use quality solar panels and batteries.
Configure the correct charging profile.
Maintain proper ventilation.
Inspect wiring regularly.
Follow recommended PV input limits.
Avoid
Connecting reverse battery polarity.
Exceeding the controller’s rated charging capacity.
Blocking ventilation openings.
Installing in wet or excessively hot environments.
Using damaged cables or loose connections.
Performance Overview
Function
Performance
MPPT Efficiency
Excellent
Charging Performance
Excellent
Battery Protection
Excellent
Energy Conversion
Excellent
Reliability
Excellent
Frequently Asked Questions
What battery systems does this controller support?
It automatically detects and supports 12V, 24V, and 48V battery systems.
Can it charge lithium batteries?
Yes. It is compatible with LiFePO₄ lithium batteries, as well as AGM, Gel, and Flooded Lead-Acid batteries.
What is MPPT technology?
MPPT (Maximum Power Point Tracking) continuously adjusts the operating point of the solar panels to harvest the maximum available energy, improving charging efficiency compared to PWM controllers.
Does it include battery protection?
Yes. It includes protection against overcharging, over-discharging, reverse polarity, short circuits, overload, and overheating.
Is it suitable for off-grid solar systems?
Yes. It is an excellent choice for residential, commercial, agricultural, and off-grid solar power systems.
Why Choose the 120A Seven SS Stars SCCM12048 MPPT Charge Controller
High-capacity 120A charging
Advanced MPPT technology for maximum solar harvesting
